1. 目录

[TOC]

2. 说明

springboot 是一个脚手架，主要用于初始化spring相关的配置，以及根据约定的格式快速配置
约定优于配置是其主要思想

3. 依赖分析

4. 源码分析

4.1. 主入口SpringApplication.run()

1
2
3
public static void main(String[] args) {
    SpringApplication.run(D7SpringbootSourceApp.class, args);
}

直接进入SpringApplication创建

1
2
3
4
5
6
7
public static ConfigurableApplicationContext run(Class<?> primarySource, String... args) {
    return run(new Class<?>[] { primarySource }, args);
}
public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
    return new SpringApplication(primarySources).run(args);
}

4.2. new SpringApplication(primarySources) 构造SpringApplication

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public SpringApplication(Class<?>... primarySources) {
    this(null, primarySources);
}
public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
    //赋值resourceLoader、primarySources，直接设置属性，没啥逻辑
    this.resourceLoader = resourceLoader;
    Assert.notNull(primarySources, "PrimarySources must not be null");
    this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));

    //获取应用类型，是获取SERVLET、REACTIVE、NONE中，默认主要是SERVLET，classpath有REACTIVE的包才会使用REACTIVE
    this.webApplicationType = WebApplicationType.deduceFromClasspath();

    //设置初始化器 getSpringFactoriesInstances是获取实例的通用方法
    // 设置spring上下文初始化器直接通过set方法保存到SpringApplication属性中
    setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
    //设置上下文监听器 设置spring上下文监听器直接通过set方法保存到SpringApplication属性中
    setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
    //解析主启动类，通过异常栈找到main方法的类
    this.mainApplicationClass = deduceMainApplicationClass();
}

4.2.1. getSpringFactoriesInstances() 从spring.factories中获取类并实例化

这里是一个通用方法，通过匹配传入的类匹配

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//SpringApplication.java
private <T> Collection<T> getSpringFactoriesInstances(Class<T> type) {
    return getSpringFactoriesInstances(type, new Class<?>[] {});
}
private <T> Collection<T> getSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes, Object... args) {
    //默认从当前线程中获取到ClassLoader
    ClassLoader classLoader = getClassLoader();

    //获取到Spring.factories中配置类中传入类对应的实现类名
    Set<String> names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));
    //通过构造器创建，注意args，一般为空，要看实例构造器的参数了，里面就不分析了，一看就懂
    List<T> instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
    //排序，返回
    AnnotationAwareOrderComparator.sort(instances);
    return instances;
}

4.2.1.1. SpringFactoriesLoader.loadFactoryNames() 加载需要实例化的名字 spring-core中的方法

这里是spring-core中的方法，原本与springboot无关，这里就分析一下，但是要记住不是springboot的内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
    //获取到传入的类全名，获取默认的时候用
    String factoryTypeName = factoryType.getName();
    //加载
    return loadSpringFactories(classLoader).getOrDefault(factoryTypeName, Collections.emptyList());
}
private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {

    //缓存中取，没有曲到再解析并放入缓存，因此第一次没有缓存，后面的就有了缓存
    MultiValueMap<String, String> result = cache.get(classLoader);
    if (result != null) {
        return result;
    }

    try {
        //从所有依赖包的classpath:META-INF/spring.factories中获取到
        Enumeration<URL> urls = (classLoader != null ?
                classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
                ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
        result = new LinkedMultiValueMap<>();
        while (urls.hasMoreElements()) {
            //分析spring.factories取出其中的Properties
            URL url = urls.nextElement();
            UrlResource resource = new UrlResource(url);
            Properties properties = PropertiesLoaderUtils.loadProperties(resource);

            //遍历配置并设置到Map中
            for (Map.Entry<?, ?> entry : properties.entrySet()) {
                String factoryTypeName = ((String) entry.getKey()).trim();
                for (String factoryImplementationName : StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
                    result.add(factoryTypeName, factoryImplementationName.trim());
                }
            }
        }
        //放入缓存。此时缓存中包含所有spring.factories的配置
        cache.put(classLoader, result);
        return result;
    }
    catch (IOException ex) {
        //......忽略异常
}

4.3. SpringApplication.run()开始初始化 （主要）

前面构造了SpringApplication实例，加入了初始化器和springboot监听器，从这里开始，就开始初始化的过程了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
public ConfigurableApplicationContext run(String... args) {
    //记录时间
    StopWatch stopWatch = new StopWatch();
    stopWatch.start();

    ConfigurableApplicationContext context = null;
    Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
    //这不影响主流程，暂时不分析是啥
    configureHeadlessProperty();
    //1 获取springboot应用监听器
    //  也是从getSpringFactoriesInstances()加载的spring.factories 中获取 SpringApplicationRunListener springappplication监听器
    //  主要是getSpringFactoriesInstances()的逻辑，就不分析了
    //2 这里的监听器有一个比较特殊的`EventPublishingRunListener`，他会创建spring上下文的监听器来监听spring上下文ApplicationListener的变化，
    //  然后里面不同的监听时机发布不同的事件，从而关联到spring的各种监听器
    //  starting -> ApplicationStartingEvent
    //  environmentPrepared -> ApplicationEnvironmentPreparedEvent
    //  contextPrepared ->  ApplicationContextInitializedEvent
    //  contextLoaded   ->  ApplicationPreparedEvent 同时这里会设置ApplicationContextAware
    //  started  -> ApplicationStartedEvent
    //  running ->  ApplicationReadyEvent
    //  failed  -> ApplicationFailedEvent
    SpringApplicationRunListeners listeners = getRunListeners(args);
    //SpringApplication监听器监听启动开始
    listeners.starting();
    try {

        //构造参数，设置环境变量，设置环境变量中，
        //当环境变量准备好时通知SpringApplication监听器监听环境变量准备好事件 listeners.environmentPrepared(environment);
        ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
        ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
        configureIgnoreBeanInfo(environment);
        //打印banner
        Banner printedBanner = printBanner(environment);

        /*
            实例化ApplicationContext，根据是Servlet或者是Reactive来确定上下文的类
            默认servlet -> org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext
            这是继承GenericWebApplicationContext->GenericWebApplicationContext->ConfigurableWebApplicationContext
            与传统springmvc项目的 XmlWebApplicationContext 继承ConfigurableWebApplicationContext的实现关系不一样，详细差异见下方图片
        */
        context = createApplicationContext();

        exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
                new Class[] { ConfigurableApplicationContext.class }, context);

        //准备上下文，填充属性
        prepareContext(context, environment, listeners, applicationArguments, printedBanner);

        //刷新上下文，这里会扫描BeanDifinition，同时也会实初始化所有的bean到单例容器中，通过BeanPostProcessor扩展出大量的实现来处理
        refreshContext(context);

        //刷新后的操作,空方法
        afterRefresh(context, applicationArguments);

        //记录时间
        stopWatch.stop();
        if (this.logStartupInfo) {
            new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
        }

        //SpringApplication监听上下文已经启动
        listeners.started(context);

        //执行应用启动后的ApplicationRunner 和  CommandLineRunner，这两个通常用于应用启动后执行第一次初始化的，防止失败导致应用停止
        callRunners(context, applicationArguments);
    }
    catch (Throwable ex) {
        handleRunFailure(context, ex, exceptionReporters, listeners);
        throw new IllegalStateException(ex);
    }

    try {
        //SpringApplication监听器监听正在运行
        listeners.running(context);
    }
    catch (Throwable ex) {
        handleRunFailure(context, ex, exceptionReporters, null);
        throw new IllegalStateException(ex);
    }
    return context;
}

4.3.1. prepareContext()准备上下文

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
private void prepareContext(ConfigurableApplicationContext context, ConfigurableEnvironment environment,
        SpringApplicationRunListeners listeners, ApplicationArguments applicationArguments, Banner printedBanner) {
    //设置环境变量
    context.setEnvironment(environment);

    //设置beanNameGenerator、resourceLoader、conversionService等，比较简单，都是new然后设置
    postProcessApplicationContext(context);

    //执行初始化器
    applyInitializers(context);

    //SpringApplication监听器监听上下文已准备好
    listeners.contextPrepared(context);

    //打印启动类、启动环境 defalut/dev/prod等
    if (this.logStartupInfo) {
        logStartupInfo(context.getParent() == null);
        logStartupProfileInfo(context);
    }

    //beanFactory在创建上下文的时候就new出来了，DefaultListableBeanFactory
    ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
    //注册单例bean springApplicationArguments，这个主要提供访问传入的参数
    beanFactory.registerSingleton("springApplicationArguments", applicationArguments);

    //注册Banner？有啥用啊
    if (printedBanner != null) {
        beanFactory.registerSingleton("springBootBanner", printedBanner);
    }
    //配置覆盖
    if (beanFactory instanceof DefaultListableBeanFactory) {
        ((DefaultListableBeanFactory) beanFactory)
                .setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
    }
    //配置懒加载
    if (this.lazyInitialization) {
        context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
    }
    //拿到启动类信息
    Set<Object> sources = getAllSources();
    Assert.notEmpty(sources, "Sources must not be empty");

    //开始加载配置信息，会把@SpringBootApplication加载进去
    load(context, sources.toArray(new Object[0]));

    //上下文加载完成 ， 这个时候不包含项目中注解定义的BeanDifinition，项目中的beanDifinition要在包扫描阶段才执行
    listeners.contextLoaded(context);
}

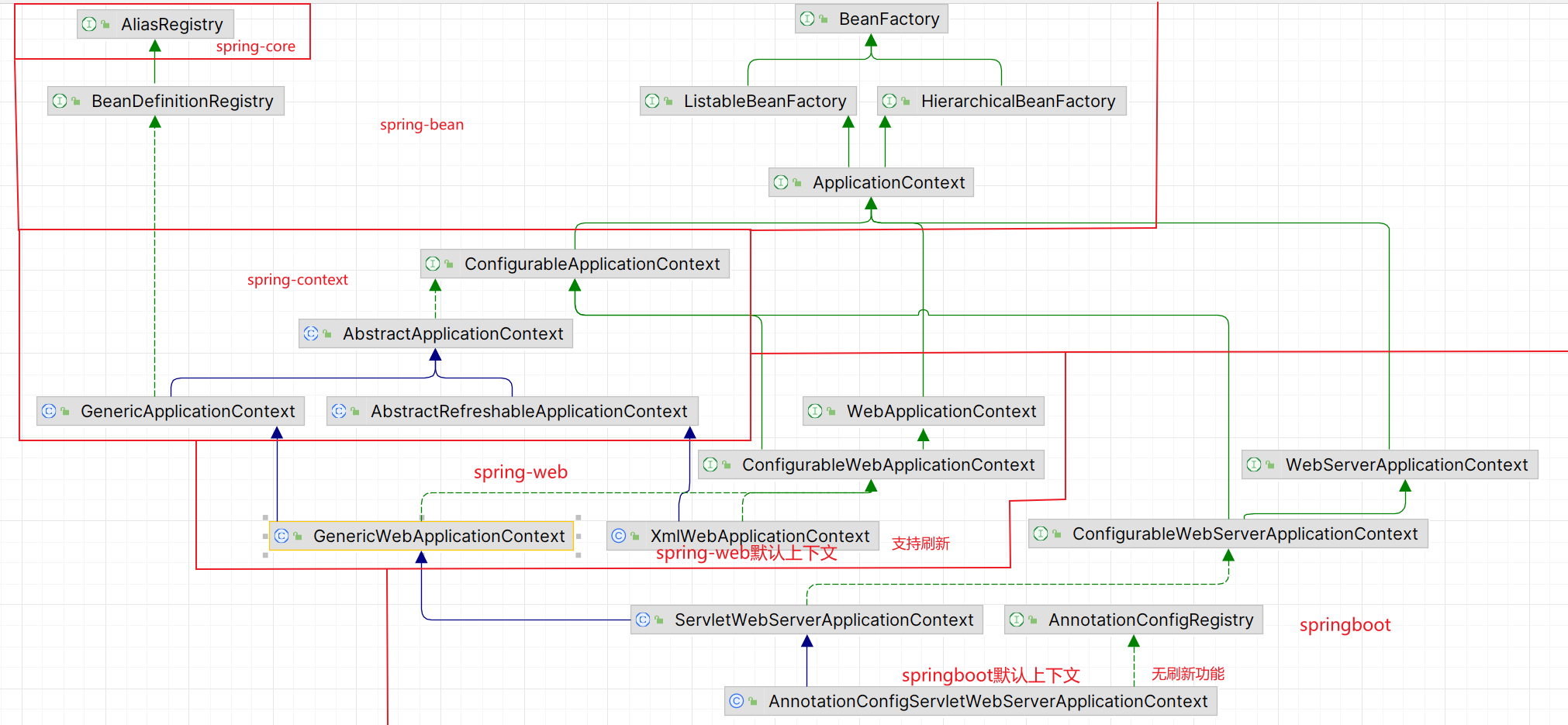

spring-web与springboot上下文的差异
spring-web与springboot上下文的差异

4.3.2. AnnotationConfigServletWebServerApplicationContext#refresh 刷新上下文

这里是真正的初始化上下文的阶段，就是spring初始化上下文的流程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
//AbstractApplicationContext.java
public void refresh() throws BeansException, IllegalStateException {
    synchronized (this.startupShutdownMonitor) {
        //准备刷新，AnnotationConfigServletWebServerApplicationContext中设置了BeanFactroy的ID
        prepareRefresh();

        //拿到BeanFactory
        ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

        //提前设置一些需要的处理器
        prepareBeanFactory(beanFactory);

        try {
            // 基本没干嘛
            postProcessBeanFactory(beanFactory);

            //执行所有的BeanFactoryPostProcessor方法初始化，spring大多数扩展(包括注解扫描等)都基于此实现的
            //springboot 这里会扫描定义的时候扫描出`AutoConfigurationImportSelector`用于扫出自动化配置并加入Bean定义中
            invokeBeanFactoryPostProcessors(beanFactory);

            // 注册所有的 BeanFactoryProcessor，为容器bean初始化准备（和spring的保持一致见spring）
            registerBeanPostProcessors(beanFactory);

            // 初始国际化(见spring)
            initMessageSource();

            // 初始化事件监听器（见spring）
            initApplicationEventMulticaster();

            // 刷新容器，这里就只处理了 initThemeSource、createWebServer，创建tomcat容器下方分析，其余同spring一样的就不分析了
            onRefresh();

            // 注册监听器(见spring)
            registerListeners();

            // 初始化所有单例bean到容器(见spring)
            finishBeanFactoryInitialization(beanFactory);

            // 注册生命周期Bean，发布上下文完成事件(见spring)
            finishRefresh();
        }
        catch (BeansException ex) {
            //......异常相关的处理
            throw ex;
        }
        finally {
            resetCommonCaches();
        }
    }
}

4.3.2.1. invokeBeanFactoryPostProcessors(beanFactory) 执行扩展处理 已经属于spring-context的内容了

执行所有的BeanFactoryProcessor方法初始化，spring大多数扩展(包括注解扫描等 初始化BeanDifinition的)都基于此实现的

原类方法有几层意义不大的，直接跳过去

1
2
3
4
5
6
7
8
9
10
11
12
//AbstractApplicationContext.java
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {

    //执行BeanFactoryPostProcessor
    PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

    //添加 LoadTimeWeaverAwareProcessor
    if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
//PostProcessorRegistrationDelegate.java
public static void invokeBeanFactoryPostProcessors(
        ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

    // Invoke BeanDefinitionRegistryPostProcessors first, if any.
    Set<String> processedBeans = new HashSet<>();

    if (beanFactory instanceof BeanDefinitionRegistry) {
         //......省略部分创建对象
        for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
            if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
                //......省略部分逻辑，这里执行BeanDefinitionRegistryPostProcessor钩子函数
                registryProcessor.postProcessBeanDefinitionRegistry(registry);
            }

        }

        //......省略了大量排序，添加集合等类容
        //根据 PriorityOrdered、Ordered、普通分别执行invokeBeanDefinitionRegistryPostProcessors
        //因此后续有三个相同的方法，只是currentRegistryProcessors内容不同

        //执行初始化BeannDefinitionRegistry,方法也是循环执行，内部就不看了，
        //最终调用postProcessor.postProcessBeanDefinitionRegistry(registry);
        invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);


        invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);

        invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);

        //执行BeanFactoryPostProcessor,这里也一样，根据排序和未排序来
        invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);

        invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
    }

    else {
        //这里基本不走
        invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
    }

    //这里也是一样，根据优先级分别执行，集合的加入清理过程已省略
    invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);
    invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);
    invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);
    beanFactory.clearMetadataCache();
}
4.3.2.1.1. ConfigurationClassPostProcessor#processConfigBeanDefinitions() 处理配置的bean定义

这个类也比较长，我们只看最主要的方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {

    //......省略了很多获取List<BeanDefinitionHolder> configCandidates的方法， 主要是传入的主类
    List<BeanDefinitionHolder> configCandidates;

    // 处理 @Configuration 注解的类
    ConfigurationClassParser parser = new ConfigurationClassParser(
            this.metadataReaderFactory, this.problemReporter, this.environment,
            this.resourceLoader, this.componentScanBeanNameGenerator, registry);

    Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
    Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
    do {
        //将类对应的配置信息解析到ConfigurationClassParser中，后续主次那个
        parser.parse(candidates);
        parser.validate();

        Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
        //**这里执行加载Bean定义的方法**
        this.reader.loadBeanDefinitions(configClasses);
        alreadyParsed.addAll(configClasses);

        candidates.clear();
        if (registry.getBeanDefinitionCount() > candidateNames.length) {
            String[] newCandidateNames = registry.getBeanDefinitionNames();
            //...省略加载子类的，用于循环
            candidateNames = newCandidateNames;
        }
    }
    while (!candidates.isEmpty());

    // 注册单例bean，供之后使用 Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
    if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
        sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
    }

    if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
        // Clear cache in externally provided MetadataReaderFactory; this is a no-op
        // for a shared cache since it'll be cleared by the ApplicationContext.
        ((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
    }
}
4.3.2.1.2. ConfigurationClassParser 配置类解析器

invokeBeanDefinitionRegistryPostProcessors()这里其中会调用一个非常重要的处理器ConfigurationClassPostProcessor,此类会处理ConfigurationClassParser
ConfigurationClassParser会处理诸如@Component、@PropertySources、ComponentScan、@ImportResource、@Import

@Import就会扫描出springboot中两个重要的类

  • AutoConfigurationImportSelector: 非常重要的扫描器，此类会执行自动配置，通过加载classpath:META-INF/spring.factories中的配置来自动配置;
  • AutoConfigurationPackages.Registrar: 自动扫描包，
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
//ConfigurationClassParser.java
protected final SourceClass doProcessConfigurationClass(
        ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)
        throws IOException {

    // 处理带@Component注解的类
    if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
        processMemberClasses(configClass, sourceClass, filter);
    }

    //处理 @PropertySource 注解
    for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
            sourceClass.getMetadata(), PropertySources.class,
            org.springframework.context.annotation.PropertySource.class)) {
        if (this.environment instanceof ConfigurableEnvironment) {
            processPropertySource(propertySource);
        }
        else {
            logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
                    "]. Reason: Environment must implement ConfigurableEnvironment");
        }
    }

    //处理 @ComponentScan 注解
    Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
            sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
    if (!componentScans.isEmpty() &&
            !this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
        for (AnnotationAttributes componentScan : componentScans) {
            // The config class is annotated with @ComponentScan -> perform the scan immediately
            Set<BeanDefinitionHolder> scannedBeanDefinitions =
                    this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
            // Check the set of scanned definitions for any further config classes and parse recursively if needed
            for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
                BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
                if (bdCand == null) {
                    bdCand = holder.getBeanDefinition();
                }
                if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
                    parse(bdCand.getBeanClassName(), holder.getBeanName());
                }
            }
        }
    }

    //处理 @Import  我们主要看这里导入
    processImports(configClass, sourceClass, getImports(sourceClass), filter, true);

    // 处理 @ImportResource
    AnnotationAttributes importResource =
            AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
    if (importResource != null) {
        String[] resources = importResource.getStringArray("locations");
        Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
        for (String resource : resources) {
            String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
            configClass.addImportedResource(resolvedResource, readerClass);
        }
    }

    //处理 @Bean 方法
    Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
    for (MethodMetadata methodMetadata : beanMethods) {
        configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
    }

    // Process default methods on interfaces
    processInterfaces(configClass, sourceClass);

    return null;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
        Collection<SourceClass> importCandidates, Predicate<String> exclusionFilter,
        boolean checkForCircularImports) {

    //......忽略一些
    //这里利用到了栈，原因是因为后面有processImports的递归操作， this.deferredImportSelectorHandler.handle()内部也会递归调用的操作
    this.importStack.push(configClass);
    try {
        for (SourceClass candidate : importCandidates) {
            //属于ImportSelector走这里，我们的AutoConfigurationImportSelector就是走这里
            if (candidate.isAssignable(ImportSelector.class)) {
                //获取ImportSelector实例
                Class<?> candidateClass = candidate.loadClass();
                ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class,
                        this.environment, this.resourceLoader, this.registry);
                Predicate<String> selectorFilter = selector.getExclusionFilter();
                if (selectorFilter != null) {
                    exclusionFilter = exclusionFilter.or(selectorFilter);
                }
                if (selector instanceof DeferredImportSelector) {
                    //AutoConfigurationImportSelector会走这里，执行handler方法
                    //这个Handler也是奇怪，只是把selector加入到了deferredImportSelectors中，
                    //最后在外层再执行this.deferredImportSelectorHandler.process() 统一加入到类中
                    this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
                }
                else {
                    String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
                    Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter);
                    processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false);
                }
            }
            else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
                // Candidate class is an ImportBeanDefinitionRegistrar ->
                // delegate to it to register additional bean definitions
                Class<?> candidateClass = candidate.loadClass();
                ImportBeanDefinitionRegistrar registrar =
                        ParserStrategyUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class,
                                this.environment, this.resourceLoader, this.registry);
                configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
            }
            else {
                // Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
                // process it as an @Configuration class
                this.importStack.registerImport(
                        currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
                processConfigurationClass(candidate.asConfigClass(configClass), exclusionFilter);
            }
        }
    }
    catch (BeanDefinitionStoreException ex) {
        throw ex;
    }
    catch (Throwable ex) {
        //......
    }
    finally {
        this.importStack.pop();
    }
}

AutoConfigurationImportSelector 扫描并获取到注解的类

4.3.2.2. onRefresh()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
//ServletWebServerApplicationContext.java
protected void onRefresh() {
    super.onRefresh();
    try {
        //创建tomcat容器
        createWebServer();
    }
    catch (Throwable ex) {
        throw new ApplicationContextException("Unable to start web server", ex);
    }
}
//创建tomcat容器
private void createWebServer() {
        //空的null
		WebServer webServer = this.webServer;
        //空的null
		ServletContext servletContext = getServletContext();
		if (webServer == null && servletContext == null) {
            //走这里，创建Servlet工厂，设置值，同tomcat启动的顺序完全相反，这里是上下文加载完成后在启动tomcat
			ServletWebServerFactory factory = getWebServerFactory();
			this.webServer = factory.getWebServer(getSelfInitializer());
			getBeanFactory().registerSingleton("webServerGracefulShutdown",
					new WebServerGracefulShutdownLifecycle(this.webServer));
			getBeanFactory().registerSingleton("webServerStartStop",
					new WebServerStartStopLifecycle(this, this.webServer));
		}
        //不走
		else if (servletContext != null) {
			try {
				getSelfInitializer().onStartup(servletContext);
			}
			catch (ServletException ex) {
				throw new ApplicationContextException("Cannot initialize servlet context", ex);
			}
		}
		initPropertySources();
	}

4.4. AutoConfigurationImportSelector 自动配置扫描器

AutoConfigurationImportSelector通过在刷新beanFactory阶段执行invokeBeanFactoryPostProcessors从而调起ConfigurationClassPostProcessor->ConfigurationClassParser->处理@Import，@Import会扫描到配置类

5. 总结

5.1. SpringApplication.run启动方法比较简单

  • 初始化初始化器和监听器
  • 准备环境变量
  • 创建上下文
  • 初始化上下文信息
  • 刷新上下文（这里面利用context.refresh方法，刷新工厂，创建beandifinition,利用扩展BeanDifinitionRegistryProcessor和BeanPostProcessor扩展应用内的注解，包括@SpringBootApplication等）
    • 准备刷新
    • 设置beanFactory
    • 提前设置一些需要bean
    • 执行BeanFactoryPostProcessors扩展，这里会加载BeanDifinition
    • 初始化BeanPostProcessors
    • 初始化事件发布器
    • 准备刷新（初始化tomcat）
    • 注册监听器
    • 执行容器初始化
    • 完成刷新
  • 完成启动

5.2. @SprinBbootApplication 很难

主要是子注解@EnableAutoConfiguration

主要在上下文刷新里面的执行BeanFactoryPostProcessors扩展时通过ConfigurationClassPostProcessor调用ConfigurationClassParser扫描@Import注解,从而扫描到AutoConfigurationImportSelector
通过AutoConfigurationImportSelector扫描自动配置类并在ConfigurationClassPostProcessor注册BeanDifinition

具体的怎么通过@Import到AutoConfigurationImportSelector并将配置类加入到ConfigurationClassParser中就不知道了，执行是直接执行ConfigurationClassParser收集到的信息；

6. 注意事项
