1. 整体流程分析
前面我们已经得知一个单点登录的流程需要以下步骤
- 客户端1正常访问业务，由于没有登录，因此重定向到登录接口
- 浏览器请求登录。login中通过
@EnableSso创建的spring-security过滤器链拦截登录请求，重定向到授权服务器获取授权码
- 授权服务器重定向至登录界面，登录完成后重定向到授权码接口继续授权
- 授权服务器授权完成后重定向到客户端1登录接口
- 客户端1携带授权码code再次访问/login接口，这次有了code，则不再请求授权码而是请求token
- 授权服务器校验code并返回token
- 客户端1拿到token后调用获取用户信息的端点接口请求用户信息
- 完成登录
- 最后重定向请求业务接口
其中，第1步，第5步，第6步，第7步是需要客户端参与的。
再分细一点，服务端有以下几个步骤
- 客户端执行业务接口，由于没有认证，则重定向客户端的登录接口
/login
- 浏览器请求登录接口，执行客户端的登录，由于此时没有携带code，会重定向到配置的授权服务器登录
- 浏览器重定向到授权服务端登录完成后，再次携带code请求登录客户端，此时已经有了code，因此会继续走客户端的登录
- 客户端拿到code调用服务端接口请求token
- 客户端拿到token之后再调用服务端（本质上来说是资源服务器，如果授权服务器和资源服务器在一起，则相当于请求的授权服务器）请求用户信息
- 拿到用户信息后完成登录
- 最后访问定义的主页
2. 源码解析
SpringSecurity的过滤器链相关的分析见 SpringSecurity过滤器链源码法分析章节，总的来说就是有多个过滤器链，根据请求url选择不同的链执行。
在理解了SpringSecurity的过滤器链上，我们来看客户端的过滤器链是怎么的结构

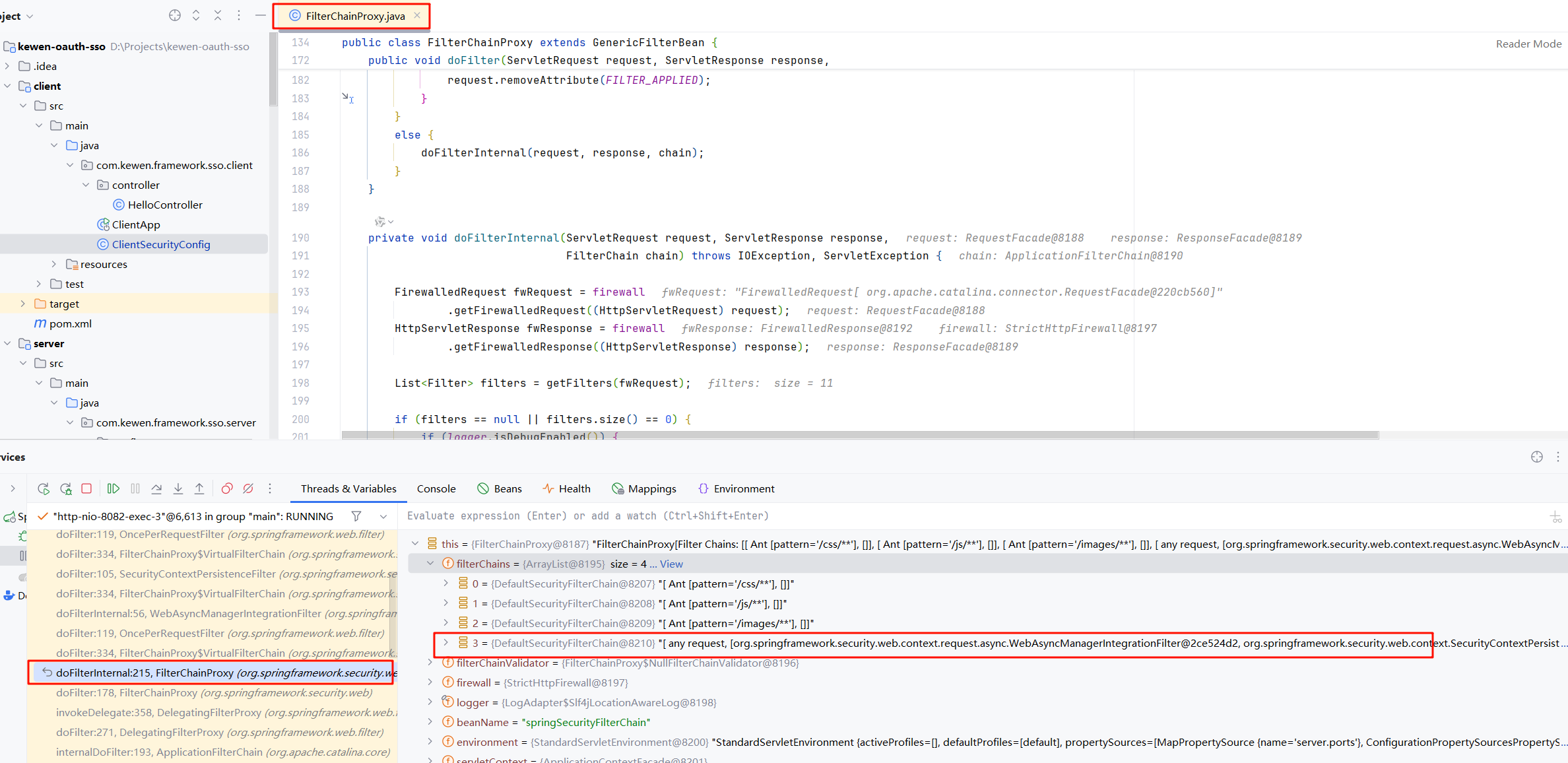

首先debug至FilterChainProxy#doFilterInternal()，
可以看出来此处除了静态资源的过滤器链就只有一个链，拦截所有的方法，这是在配置文件中配置的，配置如下，我们并没有开启formLogin（因为走单点登录，也不应开起表单登录）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| @Configuration
@EnableOAuth2Sso
public class ClientSecurityConfig extends WebSecurityConfigurerAdapter {
@Override
public void configure(WebSecurity web) throws Exception {
web.ignoring().antMatchers("/css/**", "/js/**", "/images/**");
}
@Override
protected void configure(HttpSecurity http) throws Exception {
http.authorizeRequests().anyRequest().authenticated().and().csrf().disable();
}
}
|
2.1. 第一次重定向至登录接口分析
然后debug至AbstractAuthenticationProcessingFilter，它的实现是OAuth2ClientAuthenticationProcessingFilter，从SpringSecurity分析得知AbstractAuthenticationProcessingFilter是一个认证的抽象类，主要是负责认证和认证完成的如session、返回结构等的处理，我们主要看OAuth2ClientAuthenticationProcessingFilter#attemptAuthentication()这里
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| public class OAuth2ClientAuthenticationProcessingFilter extends AbstractAuthenticationProcessingFilter {
@Override
public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)throws AuthenticationException, IOException, ServletException {
OAuth2AccessToken accessToken;
try {
accessToken = restTemplate.getAccessToken();
}
}
}
|
那我们来看restTemplate.getAccessToken()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| public class OAuth2RestTemplate extends RestTemplate implements OAuth2RestOperations {
public OAuth2AccessToken getAccessToken() throws UserRedirectRequiredException {
OAuth2AccessToken accessToken = context.getAccessToken();
if (accessToken == null || accessToken.isExpired()) {
try {
accessToken = acquireAccessToken(context);
}
catch (UserRedirectRequiredException e) {
context.setAccessToken(null);
accessToken = null;
String stateKey = e.getStateKey();
if (stateKey != null) {
Object stateToPreserve = e.getStateToPreserve();
if (stateToPreserve == null) {
stateToPreserve = "NONE";
}
context.setPreservedState(stateKey, stateToPreserve);
}
throw e;
}
}
return accessToken;
}
protected OAuth2AccessToken acquireAccessToken(OAuth2ClientContext oauth2Context)
throws UserRedirectRequiredException {
AccessTokenRequest accessTokenRequest = oauth2Context.getAccessTokenRequest();
OAuth2AccessToken accessToken = null;
accessToken = accessTokenProvider.obtainAccessToken(resource, accessTokenRequest);
}
}
|
再来看accessTokenProvider.obtainAccessToken()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
| public class AuthorizationCodeAccessTokenProvider extends OAuth2AccessTokenSupport implements AccessTokenProvider {
public OAuth2AccessToken obtainAccessToken(OAuth2ProtectedResourceDetails details, AccessTokenRequest request)
throws UserRedirectRequiredException, UserApprovalRequiredException, AccessDeniedException,
OAuth2AccessDeniedException {

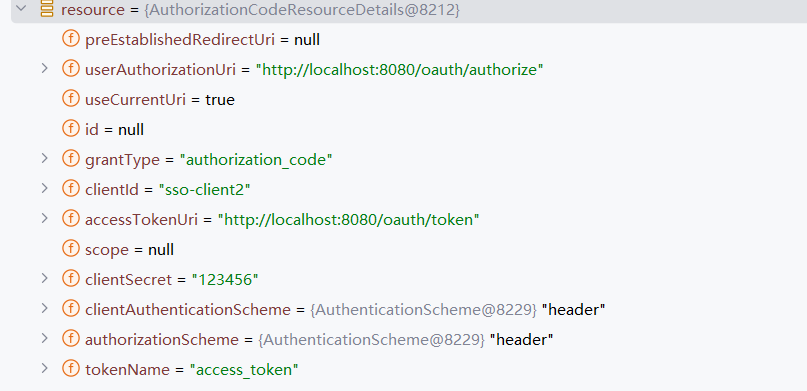

AuthorizationCodeResourceDetails resource = (AuthorizationCodeResourceDetails) details;
if (request.getAuthorizationCode() == null) {
if (request.getStateKey() == null) {
throw getRedirectForAuthorization(resource, request);
}
}
}
private UserRedirectRequiredException getRedirectForAuthorization(AuthorizationCodeResourceDetails resource,
AccessTokenRequest request) {
TreeMap<String, String> requestParameters = new TreeMap<String, String>();
requestParameters.put("response_type", "code");
requestParameters.put("client_id", resource.getClientId());
String redirectUri = resource.getRedirectUri(request);
if (redirectUri != null) {
requestParameters.put("redirect_uri", redirectUri);
}
if (resource.isScoped()) {
StringBuilder builder = new StringBuilder();
List<String> scope = resource.getScope();
if (scope != null) {
Iterator<String> scopeIt = scope.iterator();
while (scopeIt.hasNext()) {
builder.append(scopeIt.next());
if (scopeIt.hasNext()) {
builder.append(' ');
}
}
}
requestParameters.put("scope", builder.toString());
}
UserRedirectRequiredException redirectException = new UserRedirectRequiredException(
resource.getUserAuthorizationUri(), requestParameters);
String stateKey = stateKeyGenerator.generateKey(resource);
redirectException.setStateKey(stateKey);
request.setStateKey(stateKey);
redirectException.setStateToPreserve(redirectUri);
request.setPreservedState(redirectUri);
return redirectException;
}
}
|
执行完上面之后就往外抛出异常，最后由OAuth2ClientContextFilter借住异常，然后处理重定向url了
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
| public class OAuth2ClientContextFilter implements Filter, InitializingBean {
public void doFilter(ServletRequest servletRequest,
ServletResponse servletResponse, FilterChain chain)
throws IOException, ServletException {
HttpServletRequest request = (HttpServletRequest) servletRequest;
HttpServletResponse response = (HttpServletResponse) servletResponse;
request.setAttribute(CURRENT_URI, calculateCurrentUri(request));
try {
chain.doFilter(servletRequest, servletResponse);
} catch (IOException ex) {
throw ex;
} catch (Exception ex) {
Throwable[] causeChain = throwableAnalyzer.determineCauseChain(ex);
UserRedirectRequiredException redirect = (UserRedirectRequiredException) throwableAnalyzer
.getFirstThrowableOfType(
UserRedirectRequiredException.class, causeChain);
if (redirect != null) {
redirectUser(redirect, request, response);
} else {
}
}
}
protected void redirectUser(UserRedirectRequiredException e, HttpServletRequest request, HttpServletResponse response) throws IOException {
String redirectUri = e.getRedirectUri();
UriComponentsBuilder builder = UriComponentsBuilder
.fromHttpUrl(redirectUri);
Map<String, String> requestParams = e.getRequestParams();
for (Map.Entry<String, String> param : requestParams.entrySet()) {
builder.queryParam(param.getKey(), param.getValue());
}
if (e.getStateKey() != null) {
builder.queryParam("state", e.getStateKey());
}
this.redirectStrategy.sendRedirect(request, response, builder.build()
.encode().toUriString());
}
}
|
到这里就直接返回浏览器重定向获取授权了
2.2. 第二次重定向至登录接口分析
上面重定向设置了回调地址的，其实也是相同的/login地址。
从服务端获取授权首先也重定向到登录，然后在重定向到获取授权地址，授权完成后再重定向回来到登录地址(就是上一步配置的回调地址)
第二次进来我们依然从OAuth2ClientAuthenticationProcessingFilter#attemptAuthentication()这里开始
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| public class OAuth2ClientAuthenticationProcessingFilter extends AbstractAuthenticationProcessingFilter {
public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)
throws AuthenticationException, IOException, ServletException {
OAuth2AccessToken accessToken;
try {
accessToken = restTemplate.getAccessToken();
} catch (OAuth2Exception e) {
}
try {
OAuth2Authentication result = tokenServices.loadAuthentication(accessToken.getValue());
return result;
}
catch (InvalidTokenException e) {
}
}
}
|
2.2.1. 获取AccessToken
我们首先来看获取restTemplate.getAccessToken()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| public class OAuth2RestTemplate extends RestTemplate implements OAuth2RestOperations {
public OAuth2AccessToken getAccessToken() throws UserRedirectRequiredException {
OAuth2AccessToken accessToken = context.getAccessToken();
if (accessToken == null || accessToken.isExpired()) {
try {
accessToken = acquireAccessToken(context);
}
catch (UserRedirectRequiredException e) {
}
}
return accessToken;
}
protected OAuth2AccessToken acquireAccessToken(OAuth2ClientContext oauth2Context)
throws UserRedirectRequiredException {
AccessTokenRequest accessTokenRequest = oauth2Context.getAccessTokenRequest();
OAuth2AccessToken accessToken = null;
accessToken = accessTokenProvider.obtainAccessToken(resource, accessTokenRequest);
oauth2Context.setAccessToken(accessToken);
return accessToken;
}
}
|
再来看AuthorizationCodeAccessTokenProvider#obtainAccessToken()真正获取到token的地方
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
| public class AuthorizationCodeAccessTokenProvider extends OAuth2AccessTokenSupport implements AccessTokenProvider {
public OAuth2AccessToken obtainAccessToken(OAuth2ProtectedResourceDetails details, AccessTokenRequest request)
throws UserRedirectRequiredException, UserApprovalRequiredException, AccessDeniedException,
OAuth2AccessDeniedException {
AuthorizationCodeResourceDetails resource = (AuthorizationCodeResourceDetails) details;
if (request.getAuthorizationCode() == null) {
if (request.getStateKey() == null) {
throw getRedirectForAuthorization(resource, request);
}
obtainAuthorizationCode(resource, request);
}
return retrieveToken(request, resource, getParametersForTokenRequest(resource, request),
getHeadersForTokenRequest(request));
}
protected OAuth2AccessToken retrieveToken(AccessTokenRequest request, OAuth2ProtectedResourceDetails resource,
MultiValueMap<String, String> form, HttpHeaders headers) throws OAuth2AccessDeniedException {
try {
authenticationHandler.authenticateTokenRequest(resource, form, headers);
tokenRequestEnhancer.enhance(request, resource, form, headers);
final AccessTokenRequest copy = request;
final ResponseExtractor<OAuth2AccessToken> delegate = getResponseExtractor();
ResponseExtractor<OAuth2AccessToken> extractor = new ResponseExtractor<OAuth2AccessToken>() {
@Override
public OAuth2AccessToken extractData(ClientHttpResponse response) throws IOException {
if (response.getHeaders().containsKey("Set-Cookie")) {
copy.setCookie(response.getHeaders().getFirst("Set-Cookie"));
}
return delegate.extractData(response);
}
};
return getRestTemplate().execute(getAccessTokenUri(resource, form), getHttpMethod(),
getRequestCallback(resource, form, headers), extractor , form.toSingleValueMap());
}
}
}
|
2.2.2. 获取Authentication
再回到OAuth2ClientAuthenticationProcessingFilter继续执行后续
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| public class OAuth2ClientAuthenticationProcessingFilter extends AbstractAuthenticationProcessingFilter {
public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)
throws AuthenticationException, IOException, ServletException {
OAuth2AccessToken accessToken;
try {
accessToken = restTemplate.getAccessToken();
} catch (OAuth2Exception e) {
}
try {
OAuth2Authentication result = tokenServices.loadAuthentication(accessToken.getValue());
return result;
}
catch (InvalidTokenException e) {
}
}
}
|
我们来看tokenServices.loadAuthentication(accessToken.getValue())
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
|
public class UserInfoTokenServices implements ResourceServerTokenServices {
@Override
public OAuth2Authentication loadAuthentication(String accessToken)
throws AuthenticationException, InvalidTokenException {
Map<String, Object> map = getMap(this.userInfoEndpointUrl, accessToken);
return extractAuthentication(map);
}
private Map<String, Object> getMap(String path, String accessToken) {
try {
OAuth2RestOperations restTemplate = this.restTemplate;
if (restTemplate == null) {
BaseOAuth2ProtectedResourceDetails resource = new BaseOAuth2ProtectedResourceDetails();
resource.setClientId(this.clientId);
restTemplate = new OAuth2RestTemplate(resource);
}
return restTemplate.getForEntity(path, Map.class).getBody();
}
catch (Exception ex) {
}
}
private OAuth2Authentication extractAuthentication(Map<String, Object> map) {
Object principal = getPrincipal(map);
List<GrantedAuthority> authorities = this.authoritiesExtractor
.extractAuthorities(map);
OAuth2Request request = new OAuth2Request(null, this.clientId, null, true, null,
null, null, null, null);
UsernamePasswordAuthenticationToken token = new UsernamePasswordAuthenticationToken(
principal, "N/A", authorities);
token.setDetails(map);
return new OAuth2Authentication(request, token);
}
}
|
这样认证就算完成了，然后就会发布AuthenticationSuccessEvent事件继续走AbstractAuthenticationProcessingFilter的过滤器的后处理逻辑，如设置上下文等
