2. 说明

springmvc的访问流程主要从DispatcherServlet#doDispatch开始的,
Tomcat:org.apache.catalina.ApplicationFilterChain#coreApplicationFilterChain() -> Java:javax.servlet.http.HttpServlet#service()-> springmvc:FrameworkServlet#Service -> springmvc:DistpatcherServlet#doDispatch()

3. 依赖分析

4. 源码分析

主要是从DistpatcherServlet#doDispathcer()开始正式进入流程

4.1. doDispathcer()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;

    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        ModelAndView mv = null;
        Exception dispatchException = null;

        try {

            //检查并组装是否为文件上传请求，不是文件上传的话入参和返回相同
            processedRequest = checkMultipart(request);
            multipartRequestParsed = (processedRequest != request);

            //解析拦截器
            mappedHandler = getHandler(processedRequest);
            if (mappedHandler == null) {
                noHandlerFound(processedRequest, response);
                return;
            }

            //获取请求适配器
            HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

            // 省略......

            //执行拦截器链前处理返回了false，标识不再继续执行下去，返回退出
            //自己实现的拦截器就在这里执行前置方法，重要的扩展点
            if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                return;
            }

            //执行请求
            mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

            // 省略......

            //执行拦截器链后处理
            //自己实现的拦截器就在这里执行后置方法，重要的扩展点
            mappedHandler.applyPostHandle(processedRequest, response, mv);
        }
        catch (Exception ex) {
            dispatchException = ex;
        }
        catch (Throwable err) {
            // 包装异常
            dispatchException = new NestedServletException("Handler dispatch failed", err);
        }
        //组装返回数据（view或者数据）
        processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
    }
    catch (Exception ex) {
        //拦截器后处理（释放ThreadLocal等）
        //自己实现的拦截器就在这里执行完成方法，重要的扩展点
        triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
    }
    catch (Throwable err) {
        //拦截器后处理（释放ThreadLocal等）
        //自己实现的拦截器就在这里执行完成方法，重要的扩展点
        triggerAfterCompletion(processedRequest, response, mappedHandler,
                new NestedServletException("Handler processing failed", err));
    }
    finally {
        //......
    }
}

4.1.1. getHandler()

1
2
3
4
5
6
7
8
9
10
11
12
//获取拦截器链
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    if (this.handlerMappings != null) {
        for (HandlerMapping mapping : this.handlerMappings) {
            HandlerExecutionChain handler = mapping.getHandler(request);
            if (handler != null) {
                return handler;
            }
        }
    }
    return null;
}

4.1.1.1. RequestMappingHandlerMapping#getHandler()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    //获取HandlerMethod
    Object handler = getHandlerInternal(request);
    //......

    //获取拦截器链，并包装HanderMethod和Interceptors，主要是根据url来判断是否要加入对应的interceptor
    HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

    //加入cors相关......
    if (hasCorsConfigurationSource(handler) || CorsUtils.isPreFlightRequest(request)) {
        //......
    }

    return executionChain;
}
4.1.1.1.1. ReqeuestMapingHandlerMapping#getHandlerInternal()获取请求方法封装

获取HandlerMethod，即Controller的封装，包括Class、method、paramters、result类型等

1
2
3
4
5
6
7
8
9
10
11
12
13
14
protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
    //获取路径
    String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
    request.setAttribute(LOOKUP_PATH, lookupPath);
    this.mappingRegistry.acquireReadLock();
    try {
        //获取到请求封装(这个里面可以自己看一下，主要就是封装Controller的封装，包括Class、method、paramters、result类型等)
        HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
        return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
    }
    finally {
        this.mappingRegistry.releaseReadLock();
    }
}
4.1.1.1.2. getHandlerExecutionChain() 获取拦截器链
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
    HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
            (HandlerExecutionChain) handler : new HandlerExecutionChain(handler));
    //获取请求路径
    String lookupPath = this.urlPathHelper.getLookupPathForRequest(request, LOOKUP_PATH);
    for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
        if (interceptor instanceof MappedInterceptor) {
            MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
            //根据路径匹配添加拦截器
            if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
                chain.addInterceptor(mappedInterceptor.getInterceptor());
            }
        }
        else {
            chain.addInterceptor(interceptor);
        }
    }
    return chain;
}

4.1.2. getHandlerAdapter()

1
2
3
4
5
6
7
8
9
10
11
12
13

//获取请求适配器 Object handler 一般为HandlerMethod
protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
    if (this.handlerAdapters != null) {
        for (HandlerAdapter adapter : this.handlerAdapters) {
            if (adapter.supports(handler)) {
                return adapter;
            }
        }
    }
    throw new ServletException("No adapter for handler [" + handler +
            "]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
}

4.1.2.1. HandlerAdapter#supports() 是否支持

对于RequestMappingHandlerAdaptor只要是HandlerMethod就是支持的，因为RequestMappingHandlerMapping生成的就是HandlerMethod，刚好对应

1
2
3
4
5
6
public final boolean supports(Object handler) {
    return (handler instanceof HandlerMethod && supportsInternal((HandlerMethod) handler));
}
protected boolean supportsInternal(HandlerMethod handlerMethod) {
    return true;
}

4.1.3. 执行请求 ha.handle() RequestMappingHandlerAdaptor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
        throws Exception {
    return handleInternal(request, response, (HandlerMethod) handler);
}
protected ModelAndView handleInternal(HttpServletRequest request,
        HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ModelAndView mav;
    //检查是否支持的方法，GET POST等；检查是否需要session
    checkRequest(request);

    // ......省略session检查，不管是否需要session，都会进入到invokeHandlerMethod执行方法
    mav = invokeHandlerMethod(request, response, handlerMethod);


    if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
        if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
            applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
        }
        else {
            prepareResponse(response);
        }
    }

    return mav;
}
//执行的HandlerMethod方法
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
        HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    //构造Servlet请求
    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
        //WebDataBinderFactory请求参数绑定相关，即请求的参数转化成对应的数据类型，如String->Integer
        WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
        ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

        //将handlerMethod包装成ServletInvocableHandlerMethod，就new了一下，没啥可看的
        ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
        //加入请求参数解析器，默认多达26种，见下方图片
        if (this.argumentResolvers != null) {
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
        }
        //加入返回参数解析器，默认有15种，见下方图片
        if (this.returnValueHandlers != null) {
            invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
        }

        //WebDataBinderFactory请求参数绑定相关，即请求的参数转化成对应的数据类型，如String->Integer
        ModelAndViewContainer mavContainer = new ModelAndViewContainer();
        mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
        modelFactory.initModel(webRequest, mavContainer, invocableMethod);
        mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);

        //......省略异步请求相关，有点复杂，我们直接看直接请求的
        //**执行方法，重点**
        invocableMethod.invokeAndHandle(webRequest, mavContainer);
        if (asyncManager.isConcurrentHandlingStarted()) {
            return null;
        }

        return getModelAndView(mavContainer, modelFactory, webRequest);
    }
    finally {
        webRequest.requestCompleted();
    }
}

请求参数解析器argumentResolvers

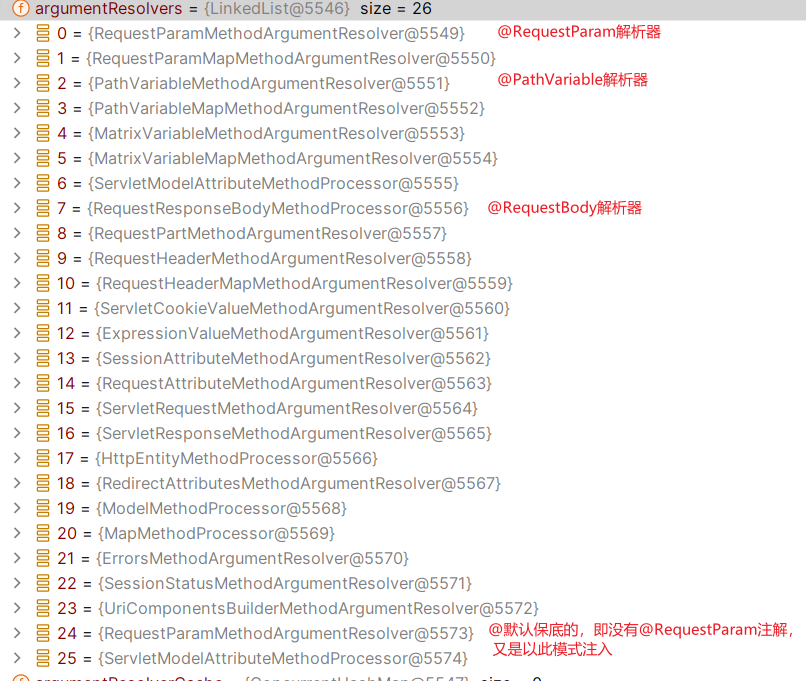

请求参数解析器

返回数据解析器returnValueHandlers

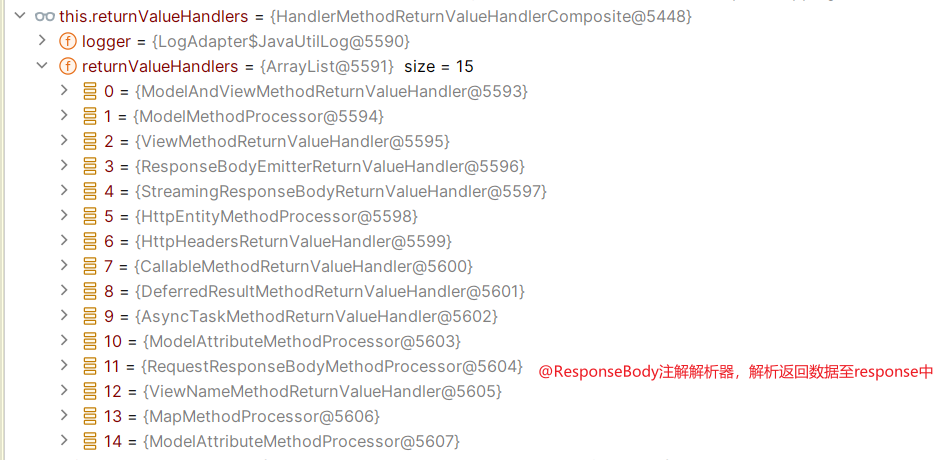

返回数据解析器

4.1.3.1. ServletInvocableHandlerMethod#invokeAndHandler() 执行请求方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer, Object... providedArgs) throws Exception {

    //执行请求，并得到返回的数据，内部调用Controller方法
    Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
    //设置响应码
    setResponseStatus(webRequest);

    //返回为空或有返回原因，设置之后返回，但是一般不走这两个，直接走后面handleReturnValue
    if (returnValue == null) {
        if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
            disableContentCachingIfNecessary(webRequest);
            mavContainer.setRequestHandled(true);
            return;
        }
    }
    else if (StringUtils.hasText(getResponseStatusReason())) {
        mavContainer.setRequestHandled(true);
        return;
    }

    mavContainer.setRequestHandled(false);
    Assert.state(this.returnValueHandlers != null, "No return value handlers");
    try {

        //处理返回数据
        this.returnValueHandlers.handleReturnValue(
                returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
    }
    catch (Exception ex) {
        //......异常抛出
    }
}
4.1.3.1.1. invokeForRequest() 执行请求
1
2
3
4
5
6
7
public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,Object... providedArgs) throws Exception {
    //解析请求的参数，如@RequestBody中的json，@RequestParam的参数列表，@PathVirable的参数
    Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);

    //执行方法
    return doInvoke(args);
}
4.1.3.1.1.1. getMethodArgumentValues() 获取方法参数列表
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer, Object... providedArgs) throws Exception {

        //获取方法参数列表，HandlerMethod封装的数据，直接拿的属性
		MethodParameter[] parameters = getMethodParameters();
		if (ObjectUtils.isEmpty(parameters)) {
			return EMPTY_ARGS;
		}

		Object[] args = new Object[parameters.length];

        //循环解析参数
		for (int i = 0; i < parameters.length; i++) {
			MethodParameter parameter = parameters[i];
			parameter.initParameterNameDiscovery(this.parameterNameDiscoverer);
            //这里匹配providedArgs中的值，若有对应类型的匹配，则赋值给args[i]，一般providedArgs为空数组，所以这里返回为null,继续往下走
			args[i] = findProvidedArgument(parameter, providedArgs);
			if (args[i] != null) {
				continue;
			}

            //通过resolvers来解析参数，绝大部分都是这里来解析，
            //解析器见上方截图argumentResolvers，一般用的常用的就标注那几种
            //ReqeustParamMethodArgumentResolver,PathVariableMethodArgumentResoulver,
            //ReeustResponseMethodProcessor
            //具体解析单个去分析
			if (!this.resolvers.supportsParameter(parameter)) {
				throw new IllegalStateException(formatArgumentError(parameter, "No suitable resolver"));
			}
			try {
				args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory);
			}
			catch (Exception ex) {
				//......抛异常，忽略
			}
		}
		return args;
	}
4.1.3.1.1.2. doInvoke()执行方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
protected Object doInvoke(Object... args) throws Exception {
    //设置访问权限
    ReflectionUtils.makeAccessible(getBridgedMethod());
    try {
        //反射执行方法，这里就执行到了Controller对应的方法了
        return getBridgedMethod().invoke(getBean(), args);
    }
    catch (IllegalArgumentException ex) {
        //......忽略异常
    }
    catch (InvocationTargetException ex) {
        //......忽略异常
    }
}

这里看完就得回到invokeAndHandler()中继续往下看了

4.1.3.1.2. returnValueHandlers.handleReturnValue() 处理返回数据
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public void handleReturnValue(@Nullable Object returnValue, MethodParameter returnType,
        ModelAndViewContainer mavContainer, NativeWebRequest webRequest) throws Exception {
    //根据返回类型和返回值选择一个处理器
    HandlerMethodReturnValueHandler handler = selectHandler(returnValue, returnType);
    if (handler == null) {
        throw new IllegalArgumentException("Unknown return value type: " + returnType.getParameterType().getName());
    }
    //执行返回数据组装方法，具体组装单独写
    handler.handleReturnValue(returnValue, returnType, mavContainer, webRequest);
}
//选择返回组装处理器
private HandlerMethodReturnValueHandler selectHandler(@Nullable Object value,MethodParameter returnType) {
    boolean isAsyncValue = isAsyncReturnValue(value, returnType);
    for (HandlerMethodReturnValueHandler handler : this.returnValueHandlers) {
        if (isAsyncValue && !(handler instanceof AsyncHandlerMethodReturnValueHandler)) {
            continue;
        }
        if (handler.supportsReturnType(returnType)) {
            return handler;
        }
    }
    return null;
}

5. 总结

请求的主要流程在于

  • 理解拦截器链的生成和执行流程
  • 请求处理器和返回处理器的类型
  • 请求执行时的请求参数解析器和返回参数解析器有多个

6. 注意事项
