2. 说明

本文分析mybatis在springboot 启动条件下的启动流程

3. 依赖分析

maven依赖

项目启动依赖

1
2
3
4
5
6
7
8
9
10
11
12
<dependencies>
    <!--mybatis启动器-->
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
    </dependency>
    <!--mysql连接，没有这个spring提供的的Datasource是不会创建的-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>
</dependencies>

mybatis-sring-boot-starter 内部依赖

mybatis-sring-boot-starter主要是做一个整合，其本身没有功能，只有一个spring.provider配置provides: mybatis-spring-boot-autoconfigure,mybatis,mybatis-spring

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
<dependencies>
    <!--springboot固有的，这个里面也没啥东西，没有类也没有配置，只有说明文件-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <!--jdbc相关，数据库连接-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-jdbc</artifactId>
    </dependency>
    <!--mybatis自动化配置，很重要，自动化加载mabatis的configuration和sqlsessionFactory-->
    <dependency>
      <groupId>org.mybatis.spring.boot</groupId>
      <artifactId>mybatis-spring-boot-autoconfigure</artifactId>
    </dependency>
    <!--mybatis的核心包，在没有spring的情况下都是可以使用的-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
    </dependency>
    <!--mybatis融入spring，这个在spring下也是核心-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
    </dependency>
  </dependencies>

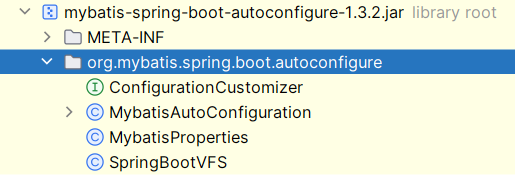

mybatis-spring-boot-autoconfigure
mybatis-spring-boot-autoconfigure

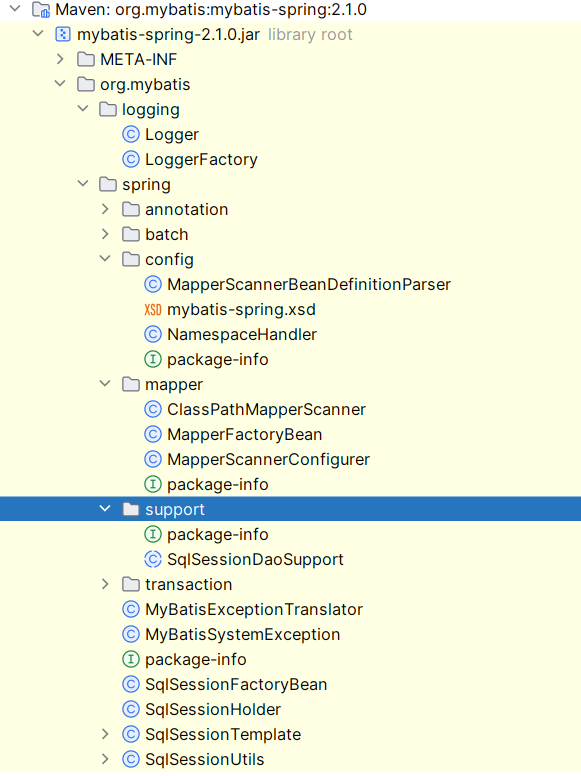

mybatis-spring mybatis

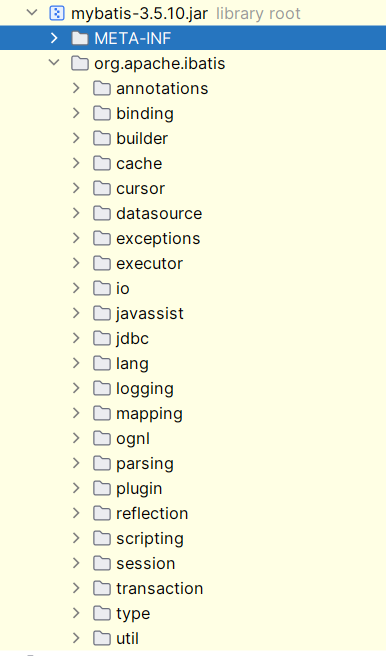

mybatis-spring mybatis

4. 源码分析

源码就直接从mybatis-spring-boot-autoconfigure开始，这里开始定义bean

AutoConfiguredMapperScannerRegistrar 配置扫描

AutoConfiguredMapperScannerRegistrar 实现了ImportBeanDefinitionRegistrar，在beanDifinition阶段会执行registerBeanDefinitions方法定义扫描的信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
//AutoConfiguredMapperScannerRegistrar
//主要是ImportBeanDefinitionRegistrar的实现，另外两个就是单纯的注入工厂
public static class AutoConfiguredMapperScannerRegistrar
      implements BeanFactoryAware, ImportBeanDefinitionRegistrar, ResourceLoaderAware {

    private BeanFactory beanFactory;

    private ResourceLoader resourceLoader;

    //主要是这个方法，注册BeanDifinition
    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {

      logger.debug("Searching for mappers annotated with @Mapper");

      //构造mybatis自己的扫描
      ClassPathMapperScanner scanner = new ClassPathMapperScanner(registry);
      try {
        if (this.resourceLoader != null) {
          scanner.setResourceLoader(this.resourceLoader);
        }

        //获取到spingboot的扫描包路径(与maybaits无关)，一般为我们的工程或者@ComponentScan扫描的
        List<String> packages = AutoConfigurationPackages.get(this.beanFactory);
        if (logger.isDebugEnabled()) {
          for (String pkg : packages) {
            logger.debug("Using auto-configuration base package '{}'", pkg);
          }
        }
        //要解析的注解， 这里是@Mapper
        scanner.setAnnotationClass(Mapper.class);
        //注册过滤器链，添加@Mapper注解的解析
        scanner.registerFilters();
        //执行扫描，这里主要是扫描@Mapper的接口
        scanner.doScan(StringUtils.toStringArray(packages));
      } catch (IllegalStateException ex) {
        logger.debug("Could not determine auto-configuration package, automatic mapper scanning disabled.", ex);
      }
    }
  }

ClassPathMapperScanner#registerFilters() 注册拦截器链

这是mybatis-spring的方法

1
2
3
4
5
6
7
8
9
10
public void registerFilters() {
    boolean acceptAllInterfaces = true;

    //添加注解过滤器到filter中,然后返回
    if (this.annotationClass != null) {
      addIncludeFilter(new AnnotationTypeFilter(this.annotationClass));
      acceptAllInterfaces = false;
    }
    //省略不重要的......
  }

ClassPathMapperScanner#doScan() 执行扫描

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
@Override
  public Set<BeanDefinitionHolder> doScan(String... basePackages) {
    //获取到扫描包下的所有@Mapper接口，并生成beanDefinition
    // 这里是spring的通用注解扫描类方法，扫描出包下的与前面设置的`scanner.setAnnotationClass(Mapper.class)`匹配的注解对应的类
    Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages);
    if (beanDefinitions.isEmpty()) {
      logger.warn("No MyBatis mapper was found in '" + Arrays.toString(basePackages) + "' package. Please check your configuration.");
    } else {
      //处理BeanDefinition定义，加入该加入的参数，
      processBeanDefinitions(beanDefinitions);
    }

    return beanDefinitions;
  }
  //处理bean定义
  private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
    GenericBeanDefinition definition;
    for (BeanDefinitionHolder holder : beanDefinitions) {

      //配置BeanDifinition参数
      definition = (GenericBeanDefinition) holder.getBeanDefinition();

      //设置构造器参数，这个很重要，后面spring初始化的时候会根据此参数传入构造器实例化对象（找了我大半天，原来就是在这里设置的）
      definition.getConstructorArgumentValues().addGenericArgumentValue(definition.getBeanClassName()); // issue #59
      //设置实例的类型，mybatis所有的Mapper都实例化MapperFactoryBean代理类，在代理类getObject()的时候创建spring的bean实例
      definition.setBeanClass(this.mapperFactoryBean.getClass());


      definition.getPropertyValues().add("addToConfig", this.addToConfig);
      //设置sqlSessionFactory，默认两个都不走，后面会单独创建
      if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
        definition.getPropertyValues().add("sqlSessionFactory", new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionFactory != null) {
        definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
        explicitFactoryUsed = true;
      }
      //设置sqlSessionTemplate,默认不走，后面会单独创建
      if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
        if (explicitFactoryUsed) {
          logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionTemplate != null) {
        if (explicitFactoryUsed) {
          logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
        explicitFactoryUsed = true;
      }

      if (!explicitFactoryUsed) {
        if (logger.isDebugEnabled()) {
          logger.debug("Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
        }
        definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
      }
    }
  }

MybatisAutoConfiguration 配置

此配置主要创建SqlSessionFactory和SqlSessionTemplate

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
@org.springframework.context.annotation.Configuration
@ConditionalOnClass({ SqlSessionFactory.class, SqlSessionFactoryBean.class })
@ConditionalOnBean(DataSource.class)
@EnableConfigurationProperties(MybatisProperties.class)
@AutoConfigureAfter(DataSourceAutoConfiguration.class)
public class MybatisAutoConfiguration {
//构造器加载容器中有的实例
    public MybatisAutoConfiguration(MybatisProperties properties,
                                    ObjectProvider<Interceptor[]> interceptorsProvider,
                                    ResourceLoader resourceLoader,
                                    ObjectProvider<DatabaseIdProvider> databaseIdProvider,
                                    ObjectProvider<List<ConfigurationCustomizer>> configurationCustomizersProvider) {
        this.properties = properties;
        this.interceptors = interceptorsProvider.getIfAvailable();
        this.resourceLoader = resourceLoader;
        this.databaseIdProvider = databaseIdProvider.getIfAvailable();
        this.configurationCustomizers = configurationCustomizersProvider.getIfAvailable();
    }

    //创建 SqlSessionFactory 工厂；mybatis-spring中很重要的
    //需要传入数据源
    @Bean
    @ConditionalOnMissingBean
    public SqlSessionFactory sqlSessionFactory(DataSource dataSource) throws Exception {
        SqlSessionFactoryBean factory = new SqlSessionFactoryBean();

        //设置数据源
        factory.setDataSource(dataSource);

        //配置文件配置
        if (StringUtils.hasText(this.properties.getConfigLocation())) {
        factory.setConfigLocation(this.resourceLoader.getResource(this.properties.getConfigLocation()));
        }
        Configuration configuration = this.properties.getConfiguration();
        if (configuration == null && !StringUtils.hasText(this.properties.getConfigLocation())) {
        configuration = new Configuration();
        }
        if (configuration != null && !CollectionUtils.isEmpty(this.configurationCustomizers)) {
        //自定义逻辑，可以自己在configuration中添加
        for (ConfigurationCustomizer customizer : this.configurationCustomizers) {
            customizer.customize(configuration);
        }
        }
        //工厂中添加配置
        factory.setConfiguration(configuration);

        if (this.properties.getConfigurationProperties() != null) {
        factory.setConfigurationProperties(this.properties.getConfigurationProperties());
        }
        if (!ObjectUtils.isEmpty(this.interceptors)) {
        factory.setPlugins(this.interceptors);
        }
        if (this.databaseIdProvider != null) {
        factory.setDatabaseIdProvider(this.databaseIdProvider);
        }
        if (StringUtils.hasLength(this.properties.getTypeAliasesPackage())) {
        factory.setTypeAliasesPackage(this.properties.getTypeAliasesPackage());
        }
        if (StringUtils.hasLength(this.properties.getTypeHandlersPackage())) {
        factory.setTypeHandlersPackage(this.properties.getTypeHandlersPackage());
        }
        if (!ObjectUtils.isEmpty(this.properties.resolveMapperLocations())) {
        factory.setMapperLocations(this.properties.resolveMapperLocations());
        }
        //执行工厂的配置及返回，总的就是将现在设置的组装返回出去
        return factory.getObject();
    }

    // SqlSessionTemplate 数据库连接
    // 传入工厂， 返回组装数据库连接
    @Bean
    @ConditionalOnMissingBean
    public SqlSessionTemplate sqlSessionTemplate(SqlSessionFactory sqlSessionFactory) {
        ExecutorType executorType = this.properties.getExecutorType();
        if (executorType != null) {
        return new SqlSessionTemplate(sqlSessionFactory, executorType);
        } else {
        return new SqlSessionTemplate(sqlSessionFactory);
        }
    }
}

Mapper实例创建及初始化

前面扫描包的时候已经将扫描到的Mapper类通过封装MapperFactoryBean加载到BeanDifnition中，接下来我们开初始化Bean的过程

创建实例工厂

spring在createBean()的时候主要通过createBeanInstance()方法创建bean，内部调用autowireConstructor()方法通过构造器创建实例，具体的spring源码我们不分析；
autowireConstructor有一系列方法处理RootBeanDefinition中定义的参数，其中就有实例化definition.setBeanClass(this.mapperFactoryBean.getClass())，把前面设置的构造器参数definition.getConstructorArgumentValues().addGenericArgumentValue(definition.getBeanClassName())传入，然后调用以下方法

1
2
3
4
5
6
7
// MapperFactoryBean.java
//MapperFactoryBean 构造器
public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {
  public MapperFactoryBean(Class<T> mapperInterface) {
    this.mapperInterface = mapperInterface;
  }
}

mapperInterface 即为我们定义的Mapper的class类型

填充属性

创建了实例之后，由于之前的BeanDifinition中设置了自动注入的类型为AUTOWIRED_BY_TYPE，则会调用对象的set方法将容器中已有的bean注入进对象中，而MapperFactoryBean包含了setSqlSessionFactory()和setSqlSessionTemplate两个自动注入，因此会把我们配置的已经被容器初始化的两个对象注入进来，如下图：

1
2
3
4
5
6
7
8
9
10
11
12
13

public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {
  public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
      if (!this.externalSqlSession) {
        this.sqlSession = new SqlSessionTemplate(sqlSessionFactory);
      }
    }

  public void setSqlSessionTemplate(SqlSessionTemplate sqlSessionTemplate) {
    this.sqlSession = sqlSessionTemplate;
    this.externalSqlSession = true;
  }
}

上面两个不管谁先执行，实际上最终注入的是启动配置中配置好的SqlSessionTemplate

同时，在afterPropertiesSet中会创建一个MapperProxyFactory加入到mybatis中的Configurare中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
//MapperFactoryBean的父类
public abstract class DaoSupport implements InitializingBean {
  @Override
  public final void afterPropertiesSet() throws IllegalArgumentException, BeanInitializationException {

    //看实现类MapperFactoryBean
    checkDaoConfig();

    try {
      //空方法
      initDao();
    }
    catch (Exception ex) {
      throw new BeanInitializationException("Initialization of DAO failed", ex);
    }
  }
}
public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {
  @Override
  protected void checkDaoConfig() {
    //......省略检查是否存在sqlsession和mapperInterface

    //获取mybatis配置对象Configuration 并加入Mapper
    Configuration configuration = getSqlSession().getConfiguration();
    if (this.addToConfig && !configuration.hasMapper(this.mapperInterface)) {
      try {
        //configuration内部就不看了，就是把当前类封装一个MapperProxyFactory加入到knownMappers中
        configuration.addMapper(this.mapperInterface);
      } catch (Exception e) {
        logger.error("Error while adding the mapper '" + this.mapperInterface + "' to configuration.", e);
        throw new IllegalArgumentException(e);
      } finally {
        ErrorContext.instance().reset();
      }
    }
  }
}

创建真正的代理Bean

在后续spring 获取bean并加入容器的时候，会调用doGetBean()-> getObjectForBeanInstance()，内部判定这是一个FactoryBean，则会调用其getObject()方法获取真正的实例

1
2
3
4
5
6
7
8
9
// MapperFactoryBean.java
public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {

  @Override
  public T getObject() throws Exception {
    //getSqlSession获取属性对象SqlSession，
    return getSqlSession().getMapper(this.mapperInterface);
  }
}

SqlSessionTemplate#getMapper()

sqlSession中配置有sqlSessionFactory，其内部配置了mybatis的Configuration,而Configuration中MapperRegistry会通过MapperProxyFactory创建一个MapperProxy实例

  • SqlSessionTemplate#getMapper()

    1
    2
    3
    public <T> T getMapper(Class<T> type) {
      return getConfiguration().getMapper(type, this);
    }

  • Configuration#getMapper()

    1
    2
    3
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
      return mapperRegistry.getMapper(type, sqlSession);
    }

  • MapperRegistry#getMapper()

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
      //这里从knownMappers拿到类型对应的MapperProxyFactory
      final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
      if (mapperProxyFactory == null) {
        throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
      }
      try {
        //这里创建新的 MapperProxy jdk动态代理对象代理原来的接口
        return mapperProxyFactory.newInstance(sqlSession);
      } catch (Exception e) {
        throw new BindingException("Error getting mapper instance. Cause: " + e, e);
      }
    }

5. 总结

mybatis启动的主要流程就是在SqlSessionFactory、SqlSessionTemplate的生成和MapperBean的初始化过程

    1. SqlSessionFactory在MybatisAutoConfiguration中定义。其中configurar配置根据MybatisProperties逐个加入到ConfigurarBuilder中再加入到SqlSessionFactory
    1. SqlSessionTemplate也在MybatisAutoConfiguration中定义，主要把SqlSessionFactory加入，之后实例化的时候用到
    1. Mapper的生成比较复杂，在BeanDifinition阶段会设置实例的class为MapperFactoryBean，并且把原Mapper加入到BeanDifnition的构造器属性中，在初始化Bean的时候会通过构造器注入Mapper类对象
    1. 初始化MapperFactoryBean的时候会加入Sqlsession，并在初始化方法afterProperties中将此类对应封装的代理类MapperProxyFactory加入到Configuration中，但是MapperProxyFactory此时不创建代理类
    1. 在MapperFactoryBean中getObject的时候会调用MapperProxyFactory#newInstance()创建jdk动态代理类

6. 注意事项
